INVT GD20 Series Open Loop Vector Control AC Drives

  1. Home
  2. INVT Low Voltage AC Drive
  3. INVT GD20 Series Open Loop Vector Control AC Drives
INVT-Certificate
invt-logo

POWERMAG is the authorized sales and service for INVT AC Drives, Elevator Control System, Motion Controller, PLC & HMI, Servo System & Solar Pumps.

INVT GD20 Series Open Loop Vector Control AC Drives

INVT Low Voltage AC Drive - GD20 Series Open Loop Vector Control AC Drives
INVT GD20 series inverters feature excellent drive and control performance for using of sensorless vector control technology, and improve usability and reliability for the enriched hardware configurations and software functions, meeting different industrial applications. INVT GD20 series 18.5KW~110KW comes standard with built-in DC reactor, 18.5~37KW built-in standard brake unit, 45~110KW optional built-in brake unit, full range of independent air duct design, which improves product reliability and performance, and enhances product competitiveness.

Features

Excellent Control Performance

Adopting PG-free vector control mode, excellent control performance

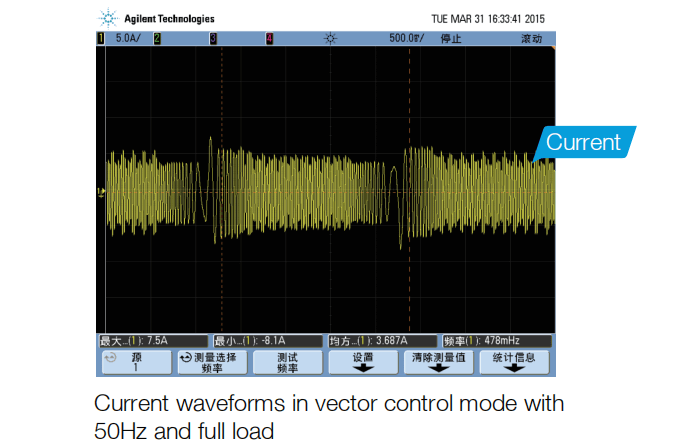

Excellent vector control performance

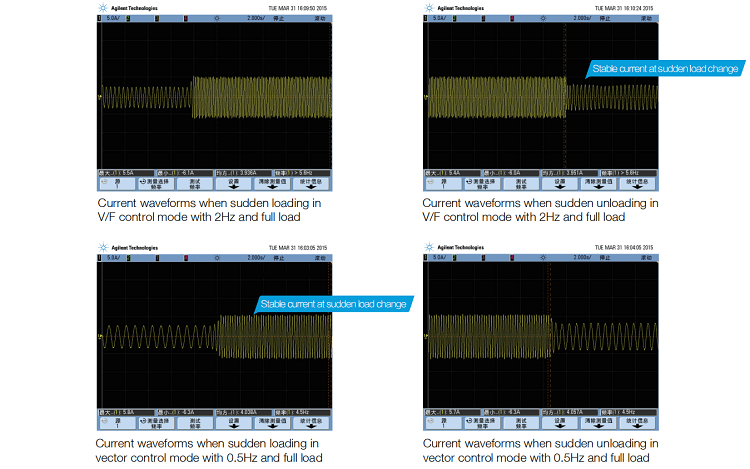

Excellent motor drive performance

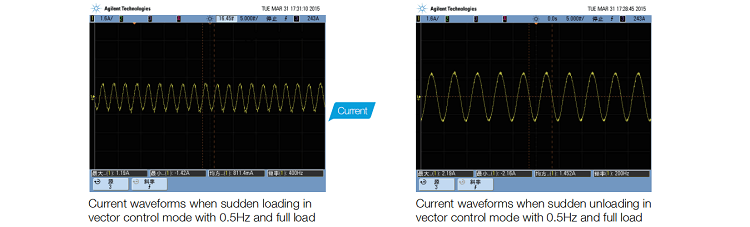

Excellent high-frequency running performance

Optimized Structure Design

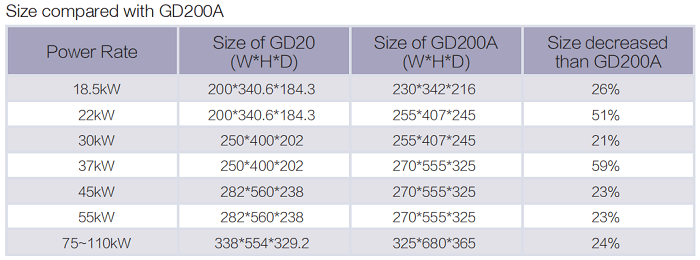

Optimized spare utilization, models (≥18.5kW) is much smaller than existing inverters

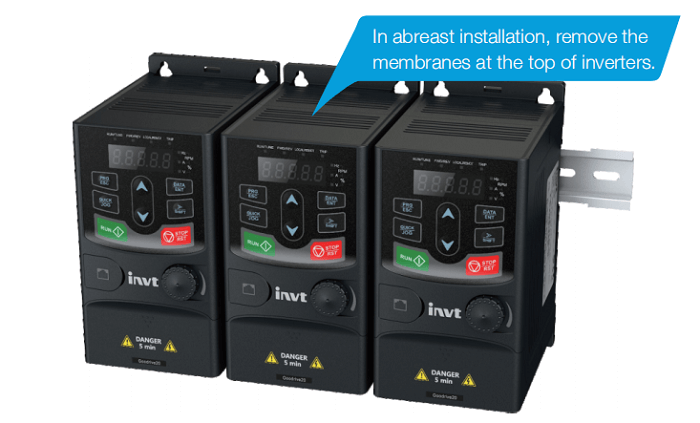

Mini design for inverters (≤ 2.2kW), abreast installation of multiple inverters, reducing installation space

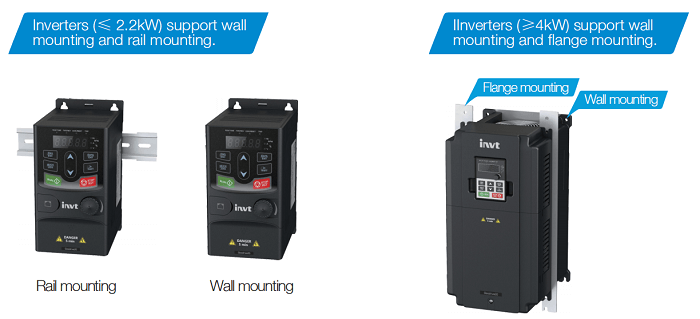

Flexible installation ways

Multi-function and easy to use

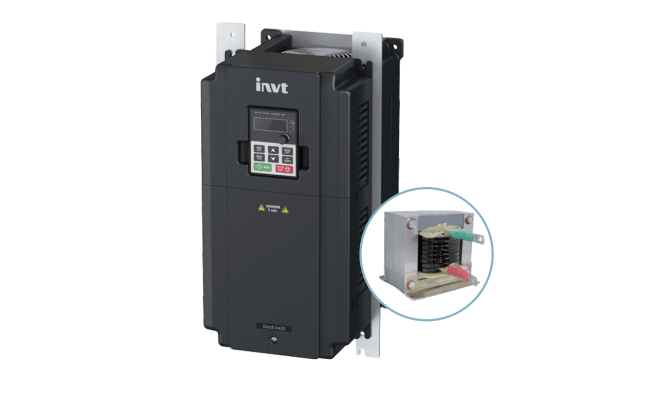

DC reactors are built-in inverters ≥18.5kW

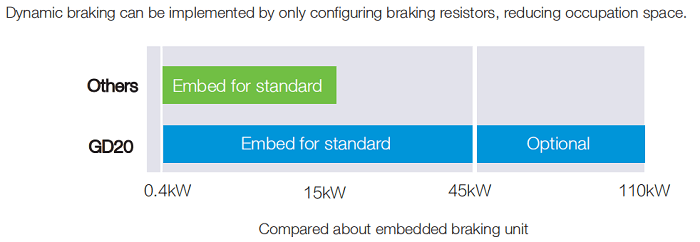

The braking unit is built-in and standard for inverters ≤37kW but optional for inverters of 45-110kW

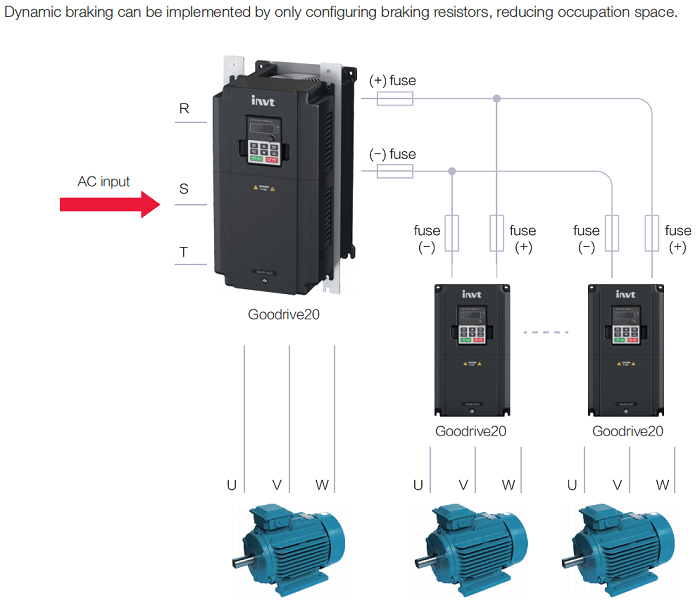

Inverters (380V; ≥4kw) support the DC bus sharing solution

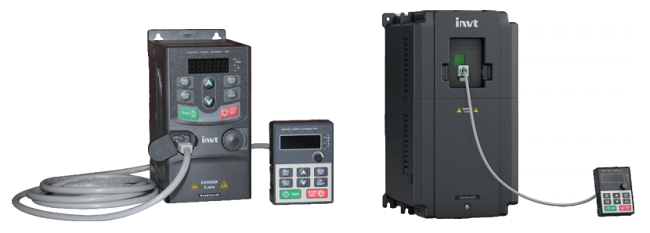

Support of external keypad

GD20 series inverters can be configured with LED keypad which has the data copy function to upload or download the parameters.

Diverse Application Requirements

Simple PLC, multi-speed control, built-in PID, torque control, multi-point V/F curve, multiple braking methods, instantaneous power failure without stopping, etc.

Applications

Vector control platform products, powerful, excellent performance, can be widely used in small and medium power applications, such as food machinery, plastic machinery, ceramic equipment, petroleum machinery, cable machinery, air compressors, machine tools, woodworking machinery, textile machinery, printing and packaging equipment, chemical equipment, environmental protection equipment, transportation equipment, etc.
