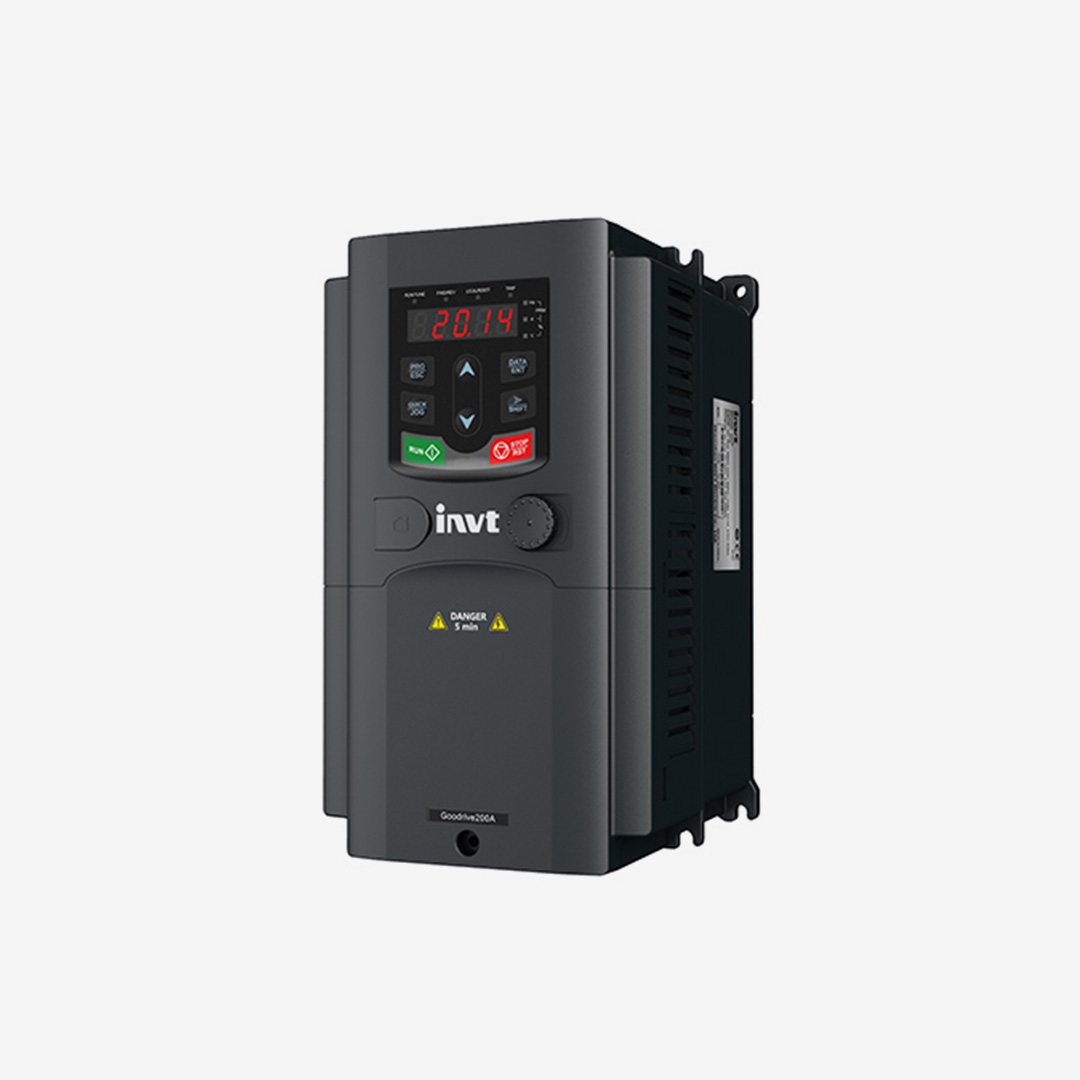

INVT GD200A Series General Purpose Drives
Based on DSP control system, INVT GD200A drives apply V/F vector control and various protections to control asynchronous motors. The air duct, hardware and software have been greatly improved for better environment adaptability, operation and reliable quality certificated by TÜV SÜD.
High performance
- More Accurate Motor Autotuning
- Advanced open loop vector control
- Perfect voltage and current control, reducing the fault protection times
- Multiple braking modes and instant stopping
- 0.75kW~500kW(Three Phase 400V)
Features
- VF and Sensorless Vector Control
- Up to 0.5Hz/150% starting torque
- Built-in braking unit (≤30kW), Optional external braking unit (≥37kW)
- External LED keypad to copy parameters(≥18.5kW), Standard membrane keypad design(≤15kW), Optional LCD keypad provided
- Standard C3 filters; Optional C2 filters
- Accurate parameters auto tuning and better motor drive
- Simple water supply function
- Support G/P dual rating
- Customization services provided (like PTC)
- CE requirements certified
Applications
Air Compressor, Oil, Warming and Water Supply, Plastics Machine, Mine, Fans and Water Pumps.
